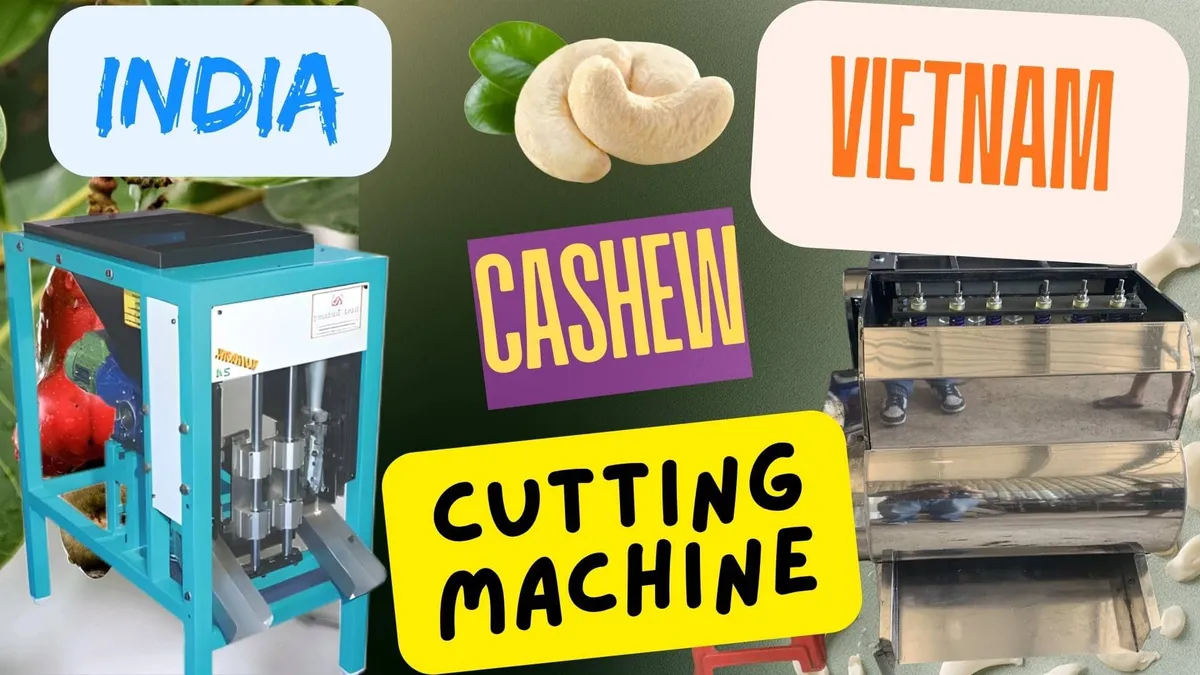

Cashew processors comparing cutting equipment often frame the decision as “Vietnam machine or India machine,” but the more useful question is mechanical: rotary or piston. This guide breaks down how each technology works, where the real performance differences show up, and which conditions favor which design.
Quick Comparison
| Rotary (Vietnam-style, e.g. OUTTURN) | Piston (India-style) | |
|---|---|---|
| Cutting motion | Horizontal rotary — cups rotate into a fixed blade | Vertical piston — reciprocating blade strikes down |
| Motor sizing | Single small motor scales across head counts | Sized around repeated strike force |
| Best suited to | Small-to-medium, mixed-size RCN grades | Large, uniform-size RCN |
| Line integration | Suits continuous, conveyor-fed automatic lines | More common as standalone units or small banks |
| CNSL handling | Enclosed flow into centrifuge stage | More reliant on downstream/manual handling |
The Fundamental Difference: How Each Machine Cuts
A rotary mechanism, the design used in OUTTURN’s machines, mounts a series of cups around a horizontal shaft. An operator loads a steamed nut into each cup, and as the shaft turns, every cup carries its nut through a fixed blade plane in sequence — a continuous, cyclical pass, with each nut scored and opened as its cup moves through the blade at a consistent height and angle.
A piston mechanism, common on Indian-style machines, works differently: a nut is held in a stationary fixture, and a blade mounted on a reciprocating piston strikes downward through the shell, then retracts before the next nut is positioned — a vertical, impact-based motion rather than a rotational, continuous one.
Both approaches split the shell along its seam, but the physics differ: rotary cutting distributes force across a rolling pass, while piston cutting concentrates it into a single downward strike.
Motor Power
This has a direct consequence for motor sizing. Because a rotary design only needs enough torque to carry cups through a low-force pass past the blade, adding more cutting stations doesn’t require a bigger motor — it just means more cups sharing the same shaft rotation. That’s why OUTTURN’s full 2-to-12-head range runs on a single 0.75 kW motor: throughput scales by multiplying cutting stations, not motor power.
Piston-style machines apply a repeated striking force to each individual nut, so their drive requirements are generally sized around that impact cycle — a different mechanical budget, not a worse one, but one reason rotary machines tend to have a lower power draw per cutting station at comparable head counts.
Capacity and Power Comparison by Head Count
Across OUTTURN’s rotary lineup, capacity rises with head count while motor power stays fixed at 0.75 kW:
- 2-head: 40–55 kg/hr, ~72% outturn
- 4-head: 80–100 kg/hr, ~73% outturn
- 6-head: 120–150 kg/hr, ~74% outturn
- 8-head: 160–195 kg/hr, ~75% outturn
- 10-head: 200–240 kg/hr, ~76% outturn
- 12-head: 240–280 kg/hr, ~77% outturn
Outturn tends to edge upward with head count on a well-run rotary line, largely because more cutting stations in continuous rotation keep the blade working steadily rather than sitting idle between nuts. Piston-style machines are typically specified by strikes-per-minute and station count rather than a shared-motor head-count range.
CNSL Management
Cashew nut shell liquid (CNSL) is the dark, caustic phenolic oil found in the shell — a genuine food-safety and handling hazard, since contact causes skin and respiratory irritation, and any cutting operation needs a clear plan for removing it before kernel is food-grade.
Rotary, enclosed-cup designs like OUTTURN’s are built to feed cleanly into a downstream centrifuge stage, moving cut shell and kernel from the cutting cups into sieving and centrifuge separation as a contained flow, with the centrifuge spinning at 1,200+ RPM to fling residual CNSL off the material. Piston-style setups, with an exposed strike point, often place more of the containment burden on operator PPE and separate downstream handling. Neither design eliminates the need for a proper centrifuge stage, but how easily the cutting stage integrates with one is worth asking about.
Line Integration: Standalone vs System Operation
A cutting machine rarely operates in isolation for long once a processor scales up. Rotary machines, with their steady rotational cycle, tend to integrate smoothly into conveyor-fed automatic lines: cup loading and blade timing are predictable, making it straightforward to bank multiple cutters in parallel ahead of a shared sieve, centrifuge, and separator stage — the approach OUTTURN uses in its automatic line. Piston-style machines, with their strike-and-reset cycle, are more commonly deployed as standalone units or smaller clusters; that doesn’t make them unsuitable for larger operations, but the path toward a fully integrated automatic line more often runs through rotary-style technology in practice.
Which Technology Is Right for Your Operation
The honest answer depends on what you’re actually cutting, not on which country designed the machine. Rotary technology tends to produce lower broken-nut rates on small and medium RCN grades and on mixed-size feedstock, common across much of Africa and Vietnam where a single week’s supply can include several size grades. Piston-style machines have a long, proven track record on large, relatively uniform nuts, a profile more typical in parts of India, and can perform comparably well when feedstock size stays consistent.
OUTTURN’s Vietnam Rotary Technology, Factory-Direct
OUTTURN manufactures rotary cutting machines out of Bình Phước, Vietnam, in the heart of the country’s cashew-growing region, and ships factory-direct to processors across Africa, Asia, and South America. Factory-direct means no distributor markup and no communication layer between you and the people who build and service the machine. If you’re weighing rotary against piston-style equipment, tell us your RCN size grade mix and target throughput, and we’ll help you find the mechanism that actually fits your feedstock.
